UTES Computerized Touch Screen Universal Testing Machines

UTES-HGFL-TS

Features

Open type cross head

Hydraulic wedge action grips

Long test stroke and test space

Loading accuracy as high as ± 1%

Straining at variable speeds to suit a wide range of materials.

Servo controlled Motorized Valve incorporating of control modes - Standard manual control, Load rate control, Elongation rate control, Load hold mode, Auto start & initial valve open start.

Windows based touch screen control panel with printing connectivity.

Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.

Wide range of standard and special accessories. Including load stabilizer.

Easy change from plain to threaded and screwed specimens.

Large effective clearance between columns enables testing of standards specimens as well as structures.

Simple controls for ease of operation.

Robust straining frame of an extremely rigid construction.

Safe operation ensured by means of safety devices.

Fully enclosed and protected pressure transducer.

Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN & 1000 kN.

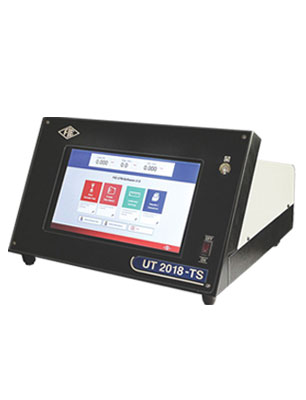

Computerized Touch Screen Control Panel (Series : UTS 2018-TS)

Micro Controller based panel incorporating state of art technology with following features:

• Front panel touch screen display
• Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
• Online graph of load Vs Displacement directly on screen.
• USB Printer port for printer interface with graph & result print out.
• Facility to export the result/ Data to PDF, EXCEL & CSV formats.
• windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.
