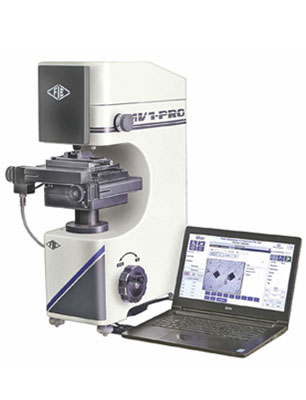

MV1-Pro

Features :

  • Fully computerized (PC based) Micro hardness tester.
  • Touch control XY movement.
  • Direct and accurate measurement of micro hardness number using 'state of art' image processing technology.
  • Wide testing range from soft metal such as lead up to hardest, like hardened steel.
  • Load range from 10 gf to 1000 gf.
  • High accuracy and repeatability of measurement at all loads.
  • Small size of indentation makes it a non-destructive testing on finished components.
  • Load selection by external knob.
  • Motorized loading and unloading cycle.
  • Measure case depth hardness.
  • Advanced windows based software includes:

  • - Latest GUI features with user friendly software.
    - Online indentation setting & focusing on PC monitor.
    - Advanced image processing algorithms implemented for precise calculations of hardness numbers with various options to cover all ranges of specimen.
    - Batch file processing: Option for data/storage & reports generation for case depth analysis etc
    - Statistical evaluation: Software for calculating standard deviation, mean, medium, frequency distribution graph, variation graph etc.
    - Calibration mode facility.
