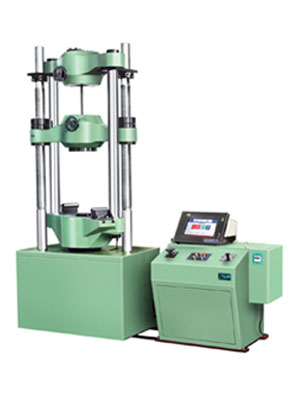

UTES-TS

Features

  • Loading accuracy as high as ± 1%
  • Servo controlled Motorized Valve incorporating of control modes- Standard manual control, Load rate control, Elongation rate control,Load hold mode, Auto start & initial valve open start.
  • Straining at variable speeds to suit a wide range of materials.
  • Windows based touch screen control panel with printing connectivity.
  • Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
  • Simplicity in reading because of digital readouts.
  • Wide range of standard and special accessories.
  • Easy change from plain to threaded and screwed specimens.
  • Large effective clearance between columns enables testing of standards specimens as well as structures.
  • Simple controls for ease of operation.
  • Robust straining frame of an extremely rigid construction.
  • Fully enclosed and protected pressure transducer.
  • Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN & 1000 kN

    • computerized-touch-screen-control-panel-series-ut-2018-ts
    Request Quote

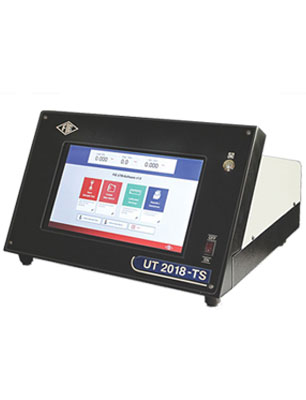

    Computerized Touch Screen Control Panel (Series : UT 2018-TS) :

    Micro Controller based panel incorporating state of art technology with following features-

    • Front panel touch screen display
    • Data entry of test parameters including pre-load, rupture %, Safe Load & Specimen data etc.
    • Online graph of load Vs Displacement directly on screen.
    • USB Printer port for printer interface with graph & result print out.
    • Facility to export the result/ Data to PDF, EXCEL & CSV formats.
    • Windows based software available for Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare With standard, zooming graph etc.
