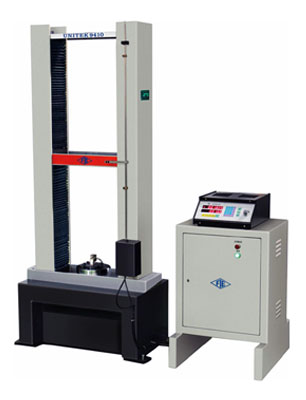

Electro Mechanical Universal Testing Machines, Model Unitek 9400 Series, India

Product Catalogue

Features :

Precision AC servo motor & drive with ball lead screw gives an advanced drive system with 1 to 500 standard speed range.
Provision for load cell interchangeability & thereby automatic selection of load full scale & Units (kN or N).
Speed selection through data entry or variable speed through potentiometer.
Facility for mounting different load cells & clamping devices to suit different tests & materials such as thin wires, metal sheets, fiber glass, leathers, springs, card boards etc.
Built-in parallel interface to connect Dot matrix printer for data & curve print-out.
Safety interlock for overload & limit switch sensing to ensure protection during test.
Universal applications in R& D, Education, Quality control & Production for test like, Tensile, Compression, Bending etc.

Electronic Control Panel (Series Universal 2001) :

Microprocessor based panel incorporating state of art technology with following features.
Front panel membrane type keyboard for machine operation with numeric keys for data entry.
7 segment display.
Auto load cell identification.
Data entry with numeric keyboard of test parameters including speeds, rupture % peak, preload, modulus data, test data, specimen data etc.
20 input data set storage, 50 result storage, maintains data & results during power off.
Batch test facility for generating batch & statistics result. Using same data set.
Optional remote to ease specimen loading/unloading.
RS232C serial port. Optional windows based software available for.........
On line graph on PC. Data analysis, statistics point tracing superimposing graphs to compare with standard, zooming graph etc.

Printer port for printer interface with :
